MOSFET Mastery Quiz


MOSFET Mastery QuizVersion en ligne Test your knowledge on MOSFET technology with this engaging quiz! par Sor Lora 1 What is MOSFET? a Metal-Oxide-Semiconductor Field-Effect Transistor b Metal-Oxide-Semiconductor Fast-Effect Transistor c Multi-Oxide-Semiconductor Field-Effect Transistor d Magnetic-Oxide-Semiconductor Field-Effect Transistor 2 What is the main function of MOSFETs? a To regulate voltage levels b To store electrical energy c To convert AC to DC d To act as a switch or amplifier in electronic circuits 3 Which type of MOSFET is normally on? a Depletion-mode MOSFET b N-channel MOSFET c Enhancement-mode MOSFET d P-channel MOSFET 4 What is the main advantage of using MOSFETs? a Low switching speed b High thermal conductivity c High input impedance and low power consumption d High output current only 5 In a MOSFET, what does the gate control? a The temperature of the device b The flow of current between the drain and source c The voltage across the source d The frequency of operation 6 What is a common application of MOSFETs? a Power amplifiers in audio devices b Mechanical switches c Optical sensors d Thermal regulators 7 What is the typical threshold voltage for a MOSFET? VT a 0 to 0.5 volts b 5 to 10 volts c 1 to 3 volts d 10 to 15 volts 8 Which material is commonly used for the gate oxide in MOSFETs? a Aluminum oxide (Al2O3) b Silicon dioxide (SiO2) c Silicon carbide (SiC) d Gallium nitride (GaN) 9 What is the main disadvantage of MOSFETs? a High power consumption b Limited frequency response c Susceptibility to damage from static electricity d Low input impedance 10 What type of MOSFET is typically used for high-speed applications? a Bipolar junction transistor b P-channel MOSFET c Depletion-mode MOSFET d N-channel MOSFET 11 What symbol is used to represent the supply voltageof the supply line that is connected (directly orindirectly) to the drain of a FET? a VDD b VGS c VSS d VDS 12 Which terminal represents the control input of a FET? a The source. b The drain. c The gate. d The base 13 What does the X value in the figure represent? a VGS b VG c VSS d IG 14 In the FET output characteristics shown below,what region is represented by the symbol 'X'? a Saturation region b Ohmic region c Operating region d Space-Charche region 15 In a P-channel type MOSFET, how must the gate voltage be with respect to the source for it to conduct? a Equal to 0 V b Positive with respect to the source c Negative with respect to the source d Greater than the drain voltage 16 What form of FET is shown here? a N-channel b P-channel 17 Determine the cut-off frequency of the following a 0.63 Hz b 1.6 Hz c 3.6 Hz d 10 Hz 18 Which of the following statements BEST describes the behavior of an n-channel enhancement-mode MOSFET in the cutoff region? a It conducts heavily between drain and source, with minimal resistance. b It acts like a voltage-controlled current source, with current proportional to VGS. c It behaves as an open circuit between drain and source, with negligible current flow. d It exhibits a constant resistance between drain and source, independent of VGS. 19 The transconductance (gm) of a MOSFET in the saturation region is primarily dependent on: a The drain-source voltage (VDS). b The gate-source voltage (VGS) and the threshold voltage (Vth). c The channel length modulation parameter (λ). d The temperature of the device. 20 In a CMOS inverter, both the NMOS and PMOS transistors are briefly in the ____ region during the switching transition a Cutoff b Saturation c Linear (Triode) d Breakdown 21 To increase the gain of a Common Source amplifier using a MOSFET, you could: a Decrease the drain resistance (RD). b Increase the source resistance (RS). c Increase the transconductance (gm) of the MOSFET. d Decrease the supply voltage (VDD). 22 A dual-gated MOSFET is a a depletion MOSFET b an enhancement MOSFET c a VMOSFET d either a depletion or an enhancement MOSFET 23 Refer to figure ID=6mA Calculate the value of VDS a -6V b 6V c 12V d -3V 24 Refer to figure ID=6mA Calculate the value of VDS a 13.2V b 10V c 6.8V d 0V 25 Refer to figure ID=6mA Calculate the value of VDS a -9V b 9V c 6V d -3V 26 A JFET data sheet specifies VGS (off)=-6v and IDSS=8mA. Find the value of ID when VGS =-3V a 2mA b 4mA c 8mA d none

MOSFET Mastery Quiz

Test

À propos de cette activité

Créé par

Téléchargez la version pour jouer sur papier

Top Jeux

Test

UPS 5 Seeing Habits Quiz

Test

Practice Quiz - Punnett Square, Variation, and Mutations

Test

Photosynthesis vs Cellular Respiration - Practice Quiz

Test

Tissues - Practice Quiz

Test

Spanish Alphabet Listening

MOSFET Mastery QuizVersion en ligne

par Sor Lora

What is MOSFET?

What is the main function of MOSFETs?

Which type of MOSFET is normally on?

What is the main advantage of using MOSFETs?

In a MOSFET, what does the gate control?

What is a common application of MOSFETs?

What is the typical threshold voltage for a MOSFET? VT

Which material is commonly used for the gate oxide in MOSFETs?

What is the main disadvantage of MOSFETs?

What type of MOSFET is typically used for high-speed applications?

What symbol is used to represent the supply voltageof the supply line that is connected (directly orindirectly) to the drain of a FET?

Which terminal represents the control input of a FET?

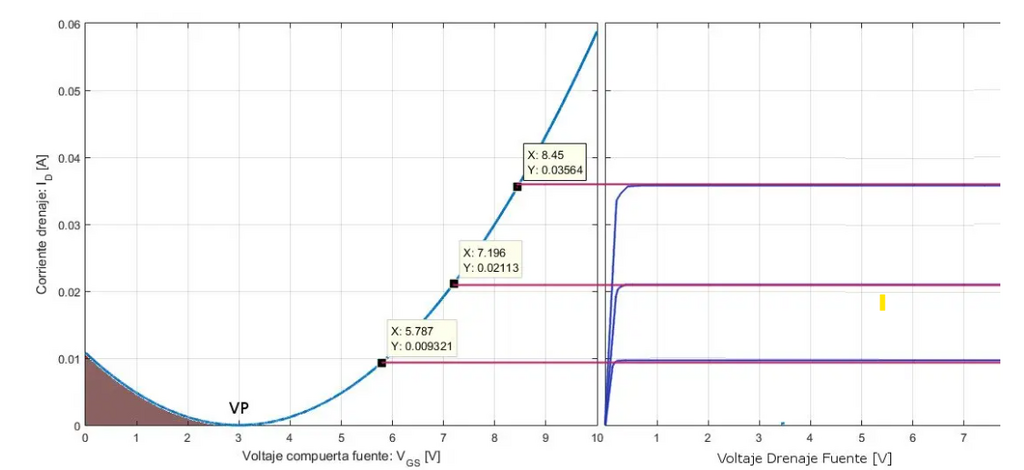

What does the X value in the figure represent?

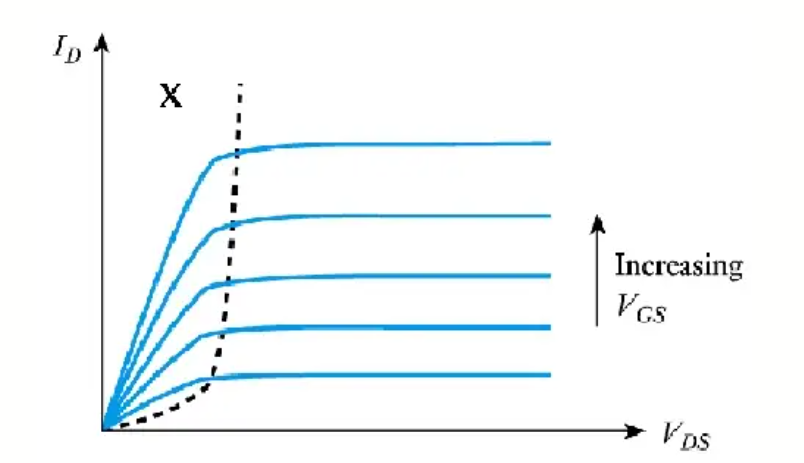

In the FET output characteristics shown below,what region is represented by the symbol 'X'?

In a P-channel type MOSFET, how must the gate voltage be with respect to the source for it to conduct?

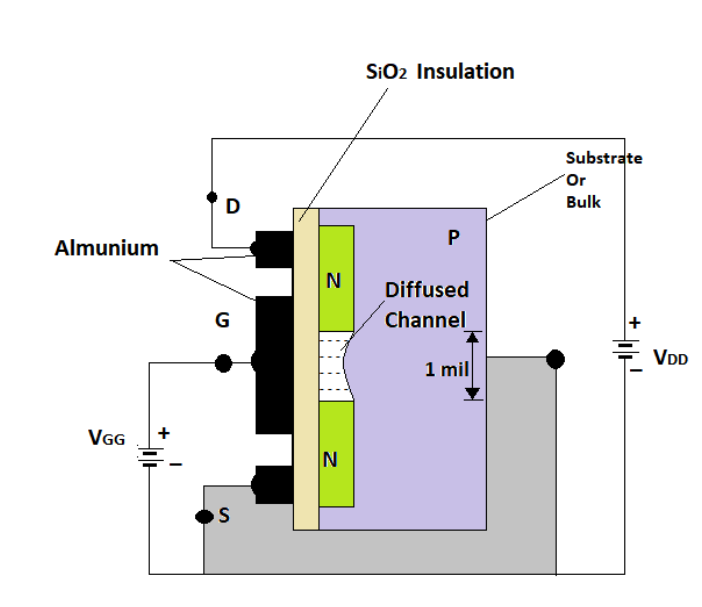

What form of FET is shown here?

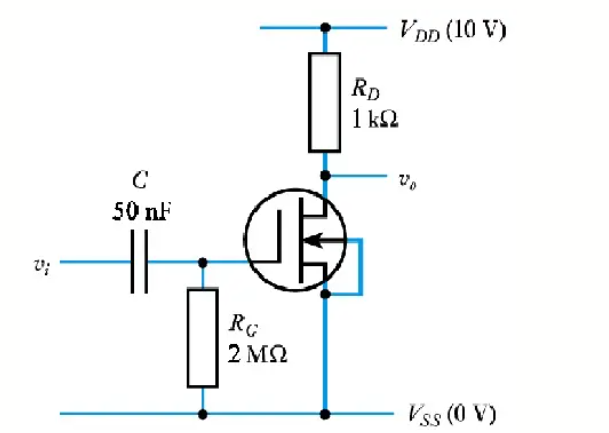

Determine the cut-off frequency of the following

Which of the following statements BEST describes the behavior of an n-channel enhancement-mode MOSFET in the cutoff region?

The transconductance (gm) of a MOSFET in the saturation region is primarily dependent on:

In a CMOS inverter, both the NMOS and PMOS transistors are briefly in the ____ region during the switching transition

To increase the gain of a Common Source amplifier using a MOSFET, you could:

A dual-gated MOSFET is

Refer to figure ID=6mA Calculate the value of VDS

Refer to figure ID=6mA Calculate the value of VDS

Refer to figure ID=6mA Calculate the value of VDS

A JFET data sheet specifies VGS (off)=-6v and IDSS=8mA. Find the value of ID when VGS =-3V
